#2142123 - 09/17/10 03:32 PM Help with 2005+ LCM bypass
h00r Offline
Member

Registered: 02/13/09
Posts: 135
Loc: Minneapolis, MN
Ive got a set of ebay led tails and im currently trying to put a 2 prong flasher in.

Im looking for the LB and the RED/WHT wires correct?
There are 2 LB wires and 2 RED/WHT wires in the same plug.

I do not know which set to use, the pinouts are very different from thhe older models like the diagram DROCK has for the turorial.

Can anyone help me and let me know which wires to cut, or does anyone actually have the pinout diagram???

I have an 06 vic
_________________________

--- 2006 Crown Vic Lx 61k - Dark Torator Red ---
|-BOC TUNE from Lonnie 92 octane-|-05 CVPI 80mm MAF-|-Marauder Wheels(winter)-|-LED Taillights-|-Body color surround HoneyComb grille-|-MagnaFlows with 3" Rolled-|-NightShades reverse and tails-|-Blackout Headligt Mod-|-Marauder Corners-|-Pioneer Double DIN-|-38% side Tint-|-15% rear tint-|SONY 800 to 4xInfinity Kappas-|-Kicker kx1200.1 to Kicker L715-|-220amp Alt-|-2nd Battery in Trunk-|-
--- 1985 Buick Rivera 95k - Midnight Blue --- SOLD
|-E&G Classics, Rolls Royce Style Grille-|-NOS '79 Disc Hubcaps-|-20% side tint-|-3% rear tint-|

Top
Links
#2142222 - 09/17/10 06:27 PM Re: Help with 2005+ LCM bypass [Re: h00r]
Acesanugal Offline
Banned
Member

Registered: 09/27/09
Posts: 172
Loc: Vermont
I believe the supermotors page that I've been given multiple times now has the 2005-2006 LCM diagrams in it. That does apply to your car...

That being said, I *still* can't make any sense of it haha
_________________________
2005 P71
3.27 open
180k, runs great!
Oddly clean inside...
Bumper Tuck
Headlight Wiring/Relay Upgrade
Second-Generation Cop Chip
...the usual squeaks, rattles, and tremors...

Top
#2142247 - 09/17/10 06:50 PM Re: Help with 2005+ LCM bypass [Re: Acesanugal]
h00r Offline
Member

Registered: 02/13/09
Posts: 135
Loc: Minneapolis, MN
it has the diagrams for the whole lcm and thats great, however it does not have the pinout diagrams for 05+ at all and I'm running into the problem of having 2 of each of the wires needed to do this, so which freegin ones should i cut?
_________________________

--- 2006 Crown Vic Lx 61k - Dark Torator Red ---
|-BOC TUNE from Lonnie 92 octane-|-05 CVPI 80mm MAF-|-Marauder Wheels(winter)-|-LED Taillights-|-Body color surround HoneyComb grille-|-MagnaFlows with 3" Rolled-|-NightShades reverse and tails-|-Blackout Headligt Mod-|-Marauder Corners-|-Pioneer Double DIN-|-38% side Tint-|-15% rear tint-|SONY 800 to 4xInfinity Kappas-|-Kicker kx1200.1 to Kicker L715-|-220amp Alt-|-2nd Battery in Trunk-|-
--- 1985 Buick Rivera 95k - Midnight Blue --- SOLD
|-E&G Classics, Rolls Royce Style Grille-|-NOS '79 Disc Hubcaps-|-20% side tint-|-3% rear tint-|

Top
#2142272 - 09/17/10 07:12 PM Re: Help with 2005+ LCM bypass [Re: h00r]
Acesanugal Offline
Banned
Member

Registered: 09/27/09
Posts: 172
Loc: Vermont
Are you just looking for power?
_________________________
2005 P71
3.27 open
180k, runs great!
Oddly clean inside...
Bumper Tuck
Headlight Wiring/Relay Upgrade
Second-Generation Cop Chip
...the usual squeaks, rattles, and tremors...

Top
#2142277 - 09/17/10 07:16 PM Re: Help with 2005+ LCM bypass [Re: Acesanugal]
Acesanugal Offline
Banned
Member

Registered: 09/27/09
Posts: 172
Loc: Vermont
Grab your multimeter and backprobe the LSM plugs at the LB and W/R wires.. turn on the ignition, and activate the indicators.

That's the only thing I can think to tell ya dude. trial and error.
_________________________
2005 P71
3.27 open
180k, runs great!
Oddly clean inside...
Bumper Tuck
Headlight Wiring/Relay Upgrade
Second-Generation Cop Chip
...the usual squeaks, rattles, and tremors...

Top
#2142280 - 09/17/10 07:20 PM Re: Help with 2005+ LCM bypass [Re: h00r]
Happy Birthday BlackVic_P71 Offline
Grand Poobah

Registered: 08/28/09
Posts: 11373
Loc: LI, NY
It does have the pinout, in the diagram, for the '06+ but having the 2 LB and 2 WH/RD wires may just make it more confusing. Have you tried just hooking the lights as is and see if you get the fast flash?
I just looked at the diagram and looked at the connector in my '05 and it's just one of each wire as it should be, they are right next to each other in the top of the black connector.


Try to contact dRock(interior and electronics guru) or Motasim123(wired all LED signal and brake lights on his '07)
_________________________
1989 Ford Crown Victoria Country Squire - awaiting a heart transplant
2005 Crown Victoria LX Sport with Stainless Works full exhaust, Addco swaybars, Heinous control arms, Powerslot rotors, Hawk HPS pads
Accufab plenum for a DBW Panther
Blue LED buttons/switches how to

Parts for sale

Top
#2142315 - 09/17/10 07:59 PM Re: Help with 2005+ LCM bypass [Re: BlackVic_P71]
h00r Offline
Member

Registered: 02/13/09
Posts: 135
Loc: Minneapolis, MN
I havent tried wiring them in at all yet.
The plug for my 06 has 2 LB on the top left where BlackVic's pic shows RED/WHT and MY plug has 2 RED/WHT on the bottom (opposing) side next to each other.
My plug also looks a little less wide...

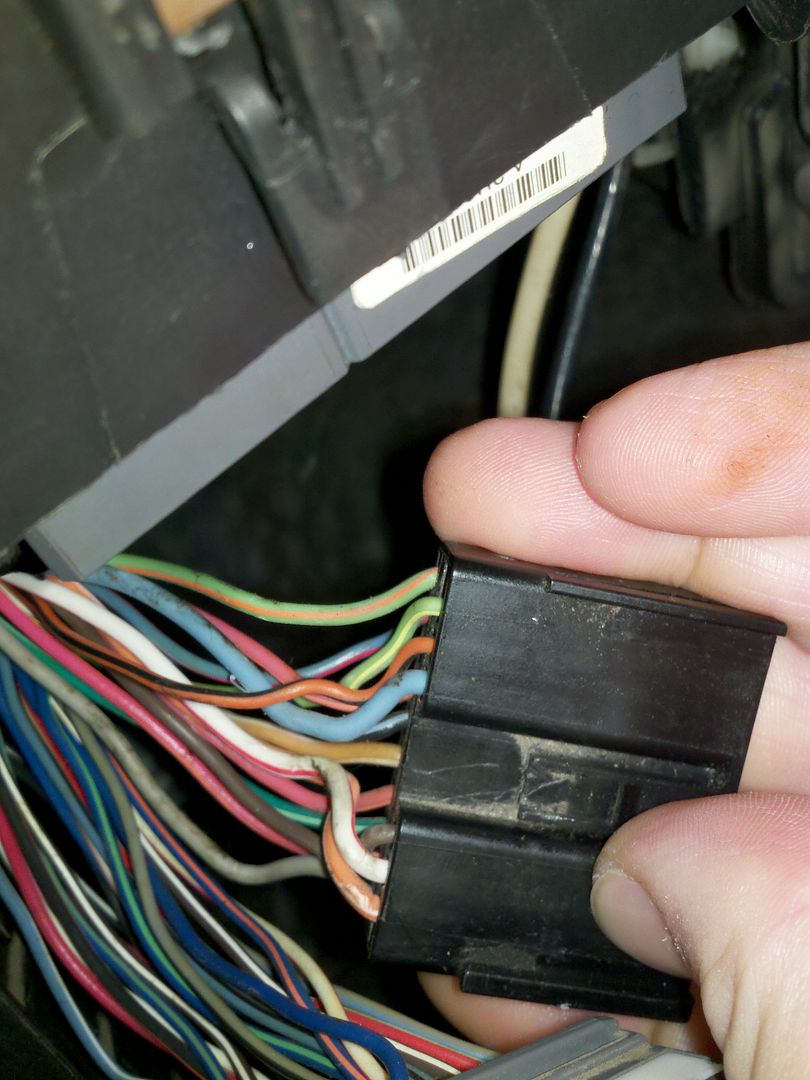

here is a bad quality pic taken with my phone:
_________________________

--- 2006 Crown Vic Lx 61k - Dark Torator Red ---
|-BOC TUNE from Lonnie 92 octane-|-05 CVPI 80mm MAF-|-Marauder Wheels(winter)-|-LED Taillights-|-Body color surround HoneyComb grille-|-MagnaFlows with 3" Rolled-|-NightShades reverse and tails-|-Blackout Headligt Mod-|-Marauder Corners-|-Pioneer Double DIN-|-38% side Tint-|-15% rear tint-|SONY 800 to 4xInfinity Kappas-|-Kicker kx1200.1 to Kicker L715-|-220amp Alt-|-2nd Battery in Trunk-|-
--- 1985 Buick Rivera 95k - Midnight Blue --- SOLD
|-E&G Classics, Rolls Royce Style Grille-|-NOS '79 Disc Hubcaps-|-20% side tint-|-3% rear tint-|

Top
#2142344 - 09/17/10 08:33 PM Re: Help with 2005+ LCM bypass [Re: h00r]
GrandMarq9807 Offline
Over the Hill

Registered: 05/10/10
Posts: 2943
Loc: Virginia
Looking at a '07 wiring diagram, I believe you'll find the two WH/R and the two LB connect to the same points inside the LCM... Both WH/R is listed as being power(ciruit 385) and do feed to the LCM from a common point(so these are no doubt common to each other)... The two LB is circuit 44 and feed different points on the multifunction switch... Measure the pins on the LCM the LB wires connect to and see if they are common to each other, will read almost zero ohms if they are...

I'm 99% sure if you connect the two WH/Red and the two LB together you'll have it whipped...
_________________________
1998 Grand Marquis LS. 61K mi.
2007 Grand Marquis GS. 61K mi.
1996 F-150 XLT 5.0 E4OD 179K mi
1988 Turbocoupe 331 AOD
1972 Comet GT 306 C4
1969 Fairlane Cobra 428CJ 4-Speed


Top
#2142350 - 09/17/10 08:45 PM Re: Help with 2005+ LCM bypass [Re: GrandMarq9807]
h00r Offline
Member

Registered: 02/13/09
Posts: 135
Loc: Minneapolis, MN
well i sure hope that works, the only other thing i can think of is an additional flasher? Idk thats just a wild guess
_________________________

--- 2006 Crown Vic Lx 61k - Dark Torator Red ---
|-BOC TUNE from Lonnie 92 octane-|-05 CVPI 80mm MAF-|-Marauder Wheels(winter)-|-LED Taillights-|-Body color surround HoneyComb grille-|-MagnaFlows with 3" Rolled-|-NightShades reverse and tails-|-Blackout Headligt Mod-|-Marauder Corners-|-Pioneer Double DIN-|-38% side Tint-|-15% rear tint-|SONY 800 to 4xInfinity Kappas-|-Kicker kx1200.1 to Kicker L715-|-220amp Alt-|-2nd Battery in Trunk-|-
--- 1985 Buick Rivera 95k - Midnight Blue --- SOLD
|-E&G Classics, Rolls Royce Style Grille-|-NOS '79 Disc Hubcaps-|-20% side tint-|-3% rear tint-|

Top
#2142479 - 09/18/10 12:03 AM Re: Help with 2005+ LCM bypass [Re: h00r]
dRock96Marquis Offline

Da Governator
Posting Addict

Registered: 02/21/05
Posts: 24351
Loc: Maryland
Like the 1998 and up Town Car, the 2006 and up CV/GMQ have two wires into and two wires out of the LCM for the flasher function.

I believe this was done as the flasher wiring has moved to a smaller connector with smaller terminal pins - which may not be capable of carrying the current draw over a single pair of pins.

The two LB wires are spliced from a single LB wire just ahead of the LCM connector - likewise for the White/Red wires.


Just use both wires for the upstream and downstream sides. If using crimp connections, use the yellow color coded terminals (female spade)
There is no need to use two flashers.
_________________________
-Derek
-'03 MB SL55 AMG (toy) -'08 MB GLK350 (d/d) -'95 Mark VIII (under renovations) -'02 Navigator ("beater")
-Panther info & FAQs-


RIP 2vmodular

Top
#2142531 - 09/18/10 02:53 AM Re: Help with 2005+ LCM bypass [Re: dRock96Marquis]
h00r Offline
Member

Registered: 02/13/09
Posts: 135
Loc: Minneapolis, MN
so either cut the wire ahead before it splits into 2 wires, or i can connect the two together and plug them into the flasher 2 wires to each pin?
_________________________

--- 2006 Crown Vic Lx 61k - Dark Torator Red ---
|-BOC TUNE from Lonnie 92 octane-|-05 CVPI 80mm MAF-|-Marauder Wheels(winter)-|-LED Taillights-|-Body color surround HoneyComb grille-|-MagnaFlows with 3" Rolled-|-NightShades reverse and tails-|-Blackout Headligt Mod-|-Marauder Corners-|-Pioneer Double DIN-|-38% side Tint-|-15% rear tint-|SONY 800 to 4xInfinity Kappas-|-Kicker kx1200.1 to Kicker L715-|-220amp Alt-|-2nd Battery in Trunk-|-
--- 1985 Buick Rivera 95k - Midnight Blue --- SOLD
|-E&G Classics, Rolls Royce Style Grille-|-NOS '79 Disc Hubcaps-|-20% side tint-|-3% rear tint-|

Top
#2142651 - 09/18/10 10:57 AM Re: Help with 2005+ LCM bypass [Re: h00r]
Happy Birthday BlackVic_P71 Offline
Grand Poobah

Registered: 08/28/09
Posts: 11373
Loc: LI, NY
I guess it's just a matter of waiting for dRock to stop by to get the answers you seek.
_________________________
1989 Ford Crown Victoria Country Squire - awaiting a heart transplant
2005 Crown Victoria LX Sport with Stainless Works full exhaust, Addco swaybars, Heinous control arms, Powerslot rotors, Hawk HPS pads
Accufab plenum for a DBW Panther
Blue LED buttons/switches how to

Parts for sale

Top
#2147551 - 09/25/10 05:22 PM Re: Help with 2005+ LCM bypass [Re: h00r]
dRock96Marquis Offline

Da Governator
Posting Addict

Registered: 02/21/05
Posts: 24351
Loc: Maryland
 Originally Posted By: h00r
so either cut the wire ahead before it splits into 2 wires, or i can connect the two together and plug them into the flasher 2 wires to each pin?

Yes, just make sure you are only pairing wires of the SAME color ;\)
This is really a 5 minute 'mod' ;\)
_________________________
-Derek
-'03 MB SL55 AMG (toy) -'08 MB GLK350 (d/d) -'95 Mark VIII (under renovations) -'02 Navigator ("beater")
-Panther info & FAQs-


RIP 2vmodular

Top
#2150812 - 09/30/10 02:46 AM Re: Help with 2005+ LCM bypass [Re: dRock96Marquis]
h00r Offline
Member

Registered: 02/13/09
Posts: 135
Loc: Minneapolis, MN
lol thanks drock
