#2556932 - 07/10/12 09:52 AM Air Bagged 1999 Merc GM!!
ChromeDaddyO Offline
Member

Registered: 05/05/11
Posts: 290
Loc: Ontario, Canada
Well it's finally started... I have wanted to bag my car since I've owned it. These cars look amazing nearly on the frame rails. I regret I have not posted many pictures along the build as i was too busy doing the work. Im getting close though. See the images below for progress. I was not able to find very much info for air ride on these cars so I've had to figure out everything on my own.

Went with factory rear bags I scored from the wreckers. Had some aluminum adapters spun up to replace the solenoids so i could put a 3/8" NPT fitting in the bag to connect my 3/8" DOT air brake line.



Got front control arms from the wrecker as well to avoid hacking up my parts.

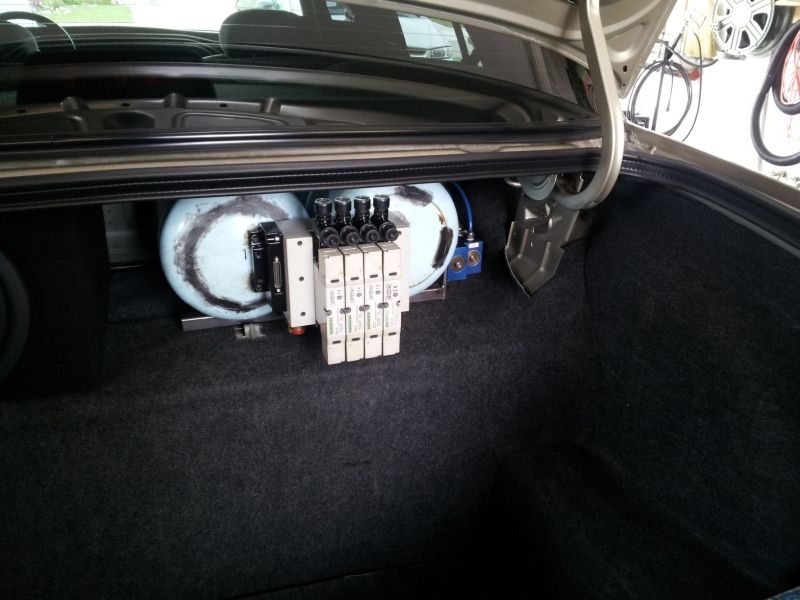

Used some very unconventional valving, I'm a manufacturing engineer and so on the last equipment tear out we did I scored the Numatics valve bank and 4 PO checks, biggest problem with this set up is these industrial valves inherently leak past the spool. A valve between my tank and manifold fixed the tank draining issue. I was going to scrap the idea of using this stuff but recently at a car show it received lots of attention, worth the hassle to be different I suppose. Additionally if there's no leak between the bag and the PO check it will hold ride height for ever. (held steady for three days until i had to move it)

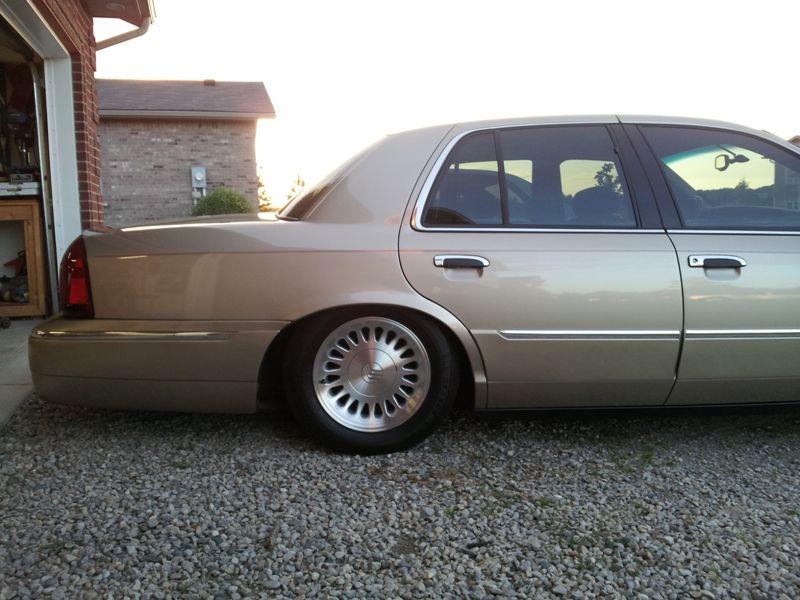

Aired out in the back!



I am nearing completion on the front, ill post more pics when i have more time. Thanks for dropping by.


Edited by ChromeDaddyO (07/10/12 09:56 AM)
_________________________
Travis,

Build Thread https://www.crownvic.net/ubbthreads/ubbthreads.php?ubb=showflat&Number=2606485&Board=16
1999 Mercury Grand Marquis (aka "The Merc")
2014 Chrysler 300S (RIP:T-Boned by Semi-Truck, thanking side air bags)
2017 GMC Sierra SLT, 6.2l (TORQUE!!!)
1986 Monte Carlo SS (Under Construction, 2002 6.0l LQ4 and 4L80E Swap, No Build Thread Yet)
Shenanegans in Monte https://www.youtube.com/watch?v=b1WLeDYKIHI

Top
Links
#2556934 - 07/10/12 09:53 AM Re: Air Bagged 1999 Merc GM!! [Re: ChromeDaddyO]
ChromeDaddyO Offline
Member

Registered: 05/05/11
Posts: 290
Loc: Ontario, Canada
Sorry my pics don't seem to be working?
_________________________
Travis,

Build Thread https://www.crownvic.net/ubbthreads/ubbthreads.php?ubb=showflat&Number=2606485&Board=16
1999 Mercury Grand Marquis (aka "The Merc")
2014 Chrysler 300S (RIP:T-Boned by Semi-Truck, thanking side air bags)
2017 GMC Sierra SLT, 6.2l (TORQUE!!!)
1986 Monte Carlo SS (Under Construction, 2002 6.0l LQ4 and 4L80E Swap, No Build Thread Yet)
Shenanegans in Monte https://www.youtube.com/watch?v=b1WLeDYKIHI

Top
#2556941 - 07/10/12 10:12 AM Re: Air Bagged 1999 Merc GM!! [Re: ChromeDaddyO]
ZombieLinux Offline
Climber

Registered: 12/20/11
Posts: 798
Loc: Hillsborough County, FL
Pics look good to me. Looks like a good project. Can't wait to see the final result.
_________________________
1996 Town Car /w 3.55 gears with Ford Racing Locker. 70mm ported & half shafted throttle body. Ported Plenum. JMOD. ADDCO Front & Rear sway bars. KYB Gas-A-Just Police Shocks /w Poly Bushings. Aluminum Thunderbird Driveshaft. BOC Tune & MZT. Lincoln LS rims with 225/60-R16s, 2006 Black Grand Marquis Seats. 03+ Defrost Duct.

Wanted parts: Tork Tech Kit, Supercharger, Manual Swap Bits.

Coming Soon: Manual Transmission (T-3650), New rear control arms, and interior/audio work.

Top
#2556958 - 07/10/12 10:51 AM Re: Air Bagged 1999 Merc GM!! [Re: ZombieLinux]
ChromeDaddyO Offline
Member

Registered: 05/05/11
Posts: 290
Loc: Ontario, Canada
yeah i fixed the pictures, i had pasted the links rather than the code.
_________________________
Travis,

Build Thread https://www.crownvic.net/ubbthreads/ubbthreads.php?ubb=showflat&Number=2606485&Board=16
1999 Mercury Grand Marquis (aka "The Merc")
2014 Chrysler 300S (RIP:T-Boned by Semi-Truck, thanking side air bags)
2017 GMC Sierra SLT, 6.2l (TORQUE!!!)
1986 Monte Carlo SS (Under Construction, 2002 6.0l LQ4 and 4L80E Swap, No Build Thread Yet)
Shenanegans in Monte https://www.youtube.com/watch?v=b1WLeDYKIHI

Top
#2556968 - 07/10/12 11:04 AM Re: Air Bagged 1999 Merc GM!! [Re: ChromeDaddyO]
Piranah Offline
Over the Hill

Registered: 11/06/11
Posts: 2306
Loc: Iowa
Man, cant wait to see. Im sure its going to look awesome. What mods did you do with the junk control arms?
_________________________
1990 Mercury Colony Park. Family Truckster. HO swap, trans with shift kit, leather interior and matte black.

Former Panthers:
1990 Lincoln Town Car Cartier.
88 LTD Crown Victoria. Fully optioned. Sold.
01 Grand Marquis. Sold
1994 Lincoln Town Car. Gone.

Top
#2556988 - 07/10/12 11:30 AM Re: Air Bagged 1999 Merc GM!! [Re: Piranah]
ChromeDaddyO Offline
Member

Registered: 05/05/11
Posts: 290
Loc: Ontario, Canada
I just plated them. I'm not sure yet but i may up size the bags and pocket them. For now it just takes a bit more pressure than id like to get to speed bump crossing height. I am going to experiment tonight with some spacer under the bags to get more force from them.

Before welding plates in.

with bags and coil cups, all custom made of course.
_________________________
Travis,

Build Thread https://www.crownvic.net/ubbthreads/ubbthreads.php?ubb=showflat&Number=2606485&Board=16
1999 Mercury Grand Marquis (aka "The Merc")
2014 Chrysler 300S (RIP:T-Boned by Semi-Truck, thanking side air bags)
2017 GMC Sierra SLT, 6.2l (TORQUE!!!)
1986 Monte Carlo SS (Under Construction, 2002 6.0l LQ4 and 4L80E Swap, No Build Thread Yet)
Shenanegans in Monte https://www.youtube.com/watch?v=b1WLeDYKIHI

Top
#2556990 - 07/10/12 11:38 AM Re: Air Bagged 1999 Merc GM!! [Re: ChromeDaddyO]
HeavyMetalMerc Offline
Over the Hill

Registered: 03/23/10
Posts: 1735
Loc: Seattle, WA
You might look into these guys.
they have been doing it for a while.
i have considered them for a full air ride system.
unless ridetech offeres something for our cars.

AIRBAGIT.COM 98-2002

they might at least offer some parts you may need.
_________________________

1998 Mercury Grand Marquis LS, HPP package
FRPP PI Intake from ADTR, Ported Plenum from ADTR, Steeda Plenum Spacer from ADTR, MSD Coils
BBK 70MM TB from ADTR, E3 Plugs, 2004 MZT, SCT X3 Tune from BOC, MAF Jumper from BOC, Optima Yellow Top
Marauder Spoiler, Steeda Oil Separator W/custom bracket, Metco Control Arms & Watts Link
Addco Rear Sway Bar w/ES Bushings, 3:73 Rear Gears with FRPP Trac Lok, Superior Rear Axles, Spruce Green Brake Calipers
PowerSlot Slotted Discs, Hawk HPS pads, Extended Tailshaft with P71 DriveShaft, Rebuilt/Painted Rear Axle, Bilstien Shocks, Chrome FR500 18's, Nitto 555's - 255/45-18 F, 285/40-18 R

"One doesnt simply drive the speed limit when listening to Heavy Metal"

Top
#2556993 - 07/10/12 11:49 AM Re: Air Bagged 1999 Merc GM!! [Re: HeavyMetalMerc]
ChromeDaddyO Offline
Member

Registered: 05/05/11
Posts: 290
Loc: Ontario, Canada
That's cool, i did not find that kit, although I did fins out airbagit.com sells knock off air bags, those are firestone lookalikes. They also have some Denominators not the be confused with Dominators. LOL. They are dirt cheap though, i thought it was worth it for the extra $30-$40 per bag to get genuine Firestone bags.

I did find a kit from Helix but they no longer made it.

If you can do some custom fab its really not that much work to make up the coil cups and LCA plates.
_________________________
Travis,

Build Thread https://www.crownvic.net/ubbthreads/ubbthreads.php?ubb=showflat&Number=2606485&Board=16
1999 Mercury Grand Marquis (aka "The Merc")
2014 Chrysler 300S (RIP:T-Boned by Semi-Truck, thanking side air bags)
2017 GMC Sierra SLT, 6.2l (TORQUE!!!)
1986 Monte Carlo SS (Under Construction, 2002 6.0l LQ4 and 4L80E Swap, No Build Thread Yet)
Shenanegans in Monte https://www.youtube.com/watch?v=b1WLeDYKIHI

Top
#2556996 - 07/10/12 11:51 AM Re: Air Bagged 1999 Merc GM!! [Re: ChromeDaddyO]
RocketCouch Offline
Sponsor
Poobah

Registered: 10/09/00
Posts: 9453
Loc: So Cal
Sweet man! Can't wait to see the final product!
_________________________


ADTR PERFORMANCE "Your One Stop Panther Performance Specialist"
Webpage: www.ADTR.net Instagram: ADTR Instagram Facebook: ADTR Facebook

Top
#2556997 - 07/10/12 11:52 AM Re: Air Bagged 1999 Merc GM!! [Re: ChromeDaddyO]
HeavyMetalMerc Offline
Over the Hill

Registered: 03/23/10
Posts: 1735
Loc: Seattle, WA
where are you going to relocate the shocks to?

and nice wheels and stance in pictures.
_________________________

1998 Mercury Grand Marquis LS, HPP package
FRPP PI Intake from ADTR, Ported Plenum from ADTR, Steeda Plenum Spacer from ADTR, MSD Coils
BBK 70MM TB from ADTR, E3 Plugs, 2004 MZT, SCT X3 Tune from BOC, MAF Jumper from BOC, Optima Yellow Top
Marauder Spoiler, Steeda Oil Separator W/custom bracket, Metco Control Arms & Watts Link
Addco Rear Sway Bar w/ES Bushings, 3:73 Rear Gears with FRPP Trac Lok, Superior Rear Axles, Spruce Green Brake Calipers
PowerSlot Slotted Discs, Hawk HPS pads, Extended Tailshaft with P71 DriveShaft, Rebuilt/Painted Rear Axle, Bilstien Shocks, Chrome FR500 18's, Nitto 555's - 255/45-18 F, 285/40-18 R

"One doesnt simply drive the speed limit when listening to Heavy Metal"

Top
#2557001 - 07/10/12 11:59 AM Re: Air Bagged 1999 Merc GM!! [Re: HeavyMetalMerc]
ChromeDaddyO Offline
Member

Registered: 05/05/11
Posts: 290
Loc: Ontario, Canada
Gonna cut out my plates tonight, last night i made up templates for shock mounts. I've got to put them in front of the control arms, that means i'm going to have to get creative with my sway bar. More Pics will come as i get that figured out.

There is actually a hole in the LCA in front of the bump stop that is likely where the sway bars used to bolt (before the nice new sway bar links were introduced), i inverted the shock and dropped it in there, then removed the tabs at the other end and replaced with tubing to bolt to my upper mounts. Picture will show better than i can explain, stay tuned.

BTW, Shockwaves are too damn expensive but would definitely make life easier.
_________________________
Travis,

Build Thread https://www.crownvic.net/ubbthreads/ubbthreads.php?ubb=showflat&Number=2606485&Board=16
1999 Mercury Grand Marquis (aka "The Merc")
2014 Chrysler 300S (RIP:T-Boned by Semi-Truck, thanking side air bags)
2017 GMC Sierra SLT, 6.2l (TORQUE!!!)
1986 Monte Carlo SS (Under Construction, 2002 6.0l LQ4 and 4L80E Swap, No Build Thread Yet)
Shenanegans in Monte https://www.youtube.com/watch?v=b1WLeDYKIHI

Top
#2557033 - 07/10/12 01:13 PM Re: Air Bagged 1999 Merc GM!! [Re: HeavyMetalMerc]
ChromeDaddyO Offline
Member

Registered: 05/05/11
Posts: 290
Loc: Ontario, Canada
I want these wheels in 20", i think they look srt of like the factory only with a nice fat lip!!!
_________________________
Travis,

Build Thread https://www.crownvic.net/ubbthreads/ubbthreads.php?ubb=showflat&Number=2606485&Board=16
1999 Mercury Grand Marquis (aka "The Merc")
2014 Chrysler 300S (RIP:T-Boned by Semi-Truck, thanking side air bags)
2017 GMC Sierra SLT, 6.2l (TORQUE!!!)
1986 Monte Carlo SS (Under Construction, 2002 6.0l LQ4 and 4L80E Swap, No Build Thread Yet)
Shenanegans in Monte https://www.youtube.com/watch?v=b1WLeDYKIHI

Top
#2557062 - 07/10/12 01:49 PM Re: Air Bagged 1999 Merc GM!! [Re: ChromeDaddyO]
ChromeDaddyO Offline
Member

Registered: 05/05/11
Posts: 290
Loc: Ontario, Canada
Wow, this is addictive. How will i get any work done?

Temporary switch box until i build my custom console. The gauge fell in on me.


With the front bump stop out... pushing it!

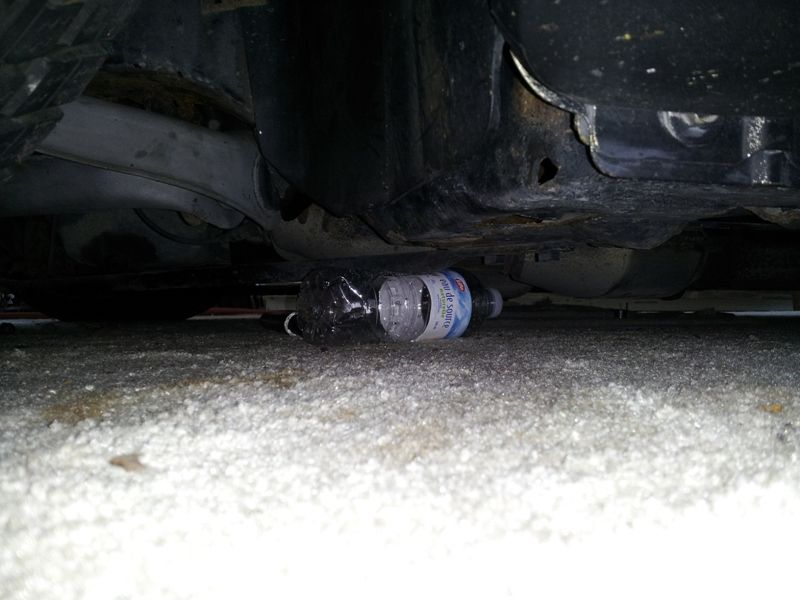

Water bottle squasher! (This is with the bump stops at full height.
_________________________
Travis,

Build Thread https://www.crownvic.net/ubbthreads/ubbthreads.php?ubb=showflat&Number=2606485&Board=16
1999 Mercury Grand Marquis (aka "The Merc")
2014 Chrysler 300S (RIP:T-Boned by Semi-Truck, thanking side air bags)
2017 GMC Sierra SLT, 6.2l (TORQUE!!!)
1986 Monte Carlo SS (Under Construction, 2002 6.0l LQ4 and 4L80E Swap, No Build Thread Yet)
Shenanegans in Monte https://www.youtube.com/watch?v=b1WLeDYKIHI

Top
#2557285 - 07/10/12 11:03 PM Re: Air Bagged 1999 Merc GM!! [Re: ChromeDaddyO]
r0ckstarr Offline
n00b

Registered: 07/05/12
Posts: 25
Loc: Galveston, Tx
It looks great.

Please tell me that you put new ball joints in those junkyard control arms. I'd hate to have one break after all that work on such a nice car.


Edited by r0ckstarr (07/10/12 11:04 PM)

Top
#2557465 - 07/11/12 07:08 AM Re: Air Bagged 1999 Merc GM!! [Re: r0ckstarr]
ChromeDaddyO Offline
Member

Registered: 05/05/11
Posts: 290
Loc: Ontario, Canada
I will be replacing all joints before riding it! I've heard the woes of broken ball joints. Moog will replace of that factory TRW stuff.
_________________________
Travis,

Build Thread https://www.crownvic.net/ubbthreads/ubbthreads.php?ubb=showflat&Number=2606485&Board=16
1999 Mercury Grand Marquis (aka "The Merc")
2014 Chrysler 300S (RIP:T-Boned by Semi-Truck, thanking side air bags)
2017 GMC Sierra SLT, 6.2l (TORQUE!!!)
1986 Monte Carlo SS (Under Construction, 2002 6.0l LQ4 and 4L80E Swap, No Build Thread Yet)
Shenanegans in Monte https://www.youtube.com/watch?v=b1WLeDYKIHI

Top
