#2582464 - 08/20/12 11:20 AM Spark Plug Wire Routing.
BigMerc96 Offline

I know nothing
Posting Addict

Registered: 06/05/10
Posts: 19868
Loc: I can see Detroit from here!
Okay, I've been searching for the last 24 hours and I have discovered that what I'm about to ask is apparently difficult.

On my '97 Town Car, I installed MSD coils and wires that are designed for a Mustang. As such, a couple of wires are shorter, and 1 is longer than the normal Panther wires. I know there are Aero guys on here running Mustang wires, seeing as literally NO good wires are made for our cars. I copied the factory routing on my Town Car, and while everything fits okay, they don't route as neatly as the stock wires.

Okay, now, here is my question, Can anyone get me a picture of your spark plug wire routing? I don't want a diagram of what wire goes to what terminal on the coils, I got that, thats all I get when I search (here, google, mustang boards). A picture of how the wires are routed near the coils would be greatly appreciated.
_________________________
-Steve

2006 Audi A6 ~132k miles, stock.
1998 Mercury Grand Marquis LS HPP ~100k miles, slowly acquiring modifications.
1997 Town Car Cartier ~145k miles, Ported Plenum, Gutted Airbox, Contour E-fan Retrofit, Dual exhaust with Magnaflows, cats deleted, MSD Ignition, KYB Gas-A-Justs, P71 front bar, air ride reinstated, Projector retrofit, Caddy 4-note horn retrofit, Wood rim steering wheel retrofit, holistic weight reduction as the parts fall off..
1996 Mercury Grand Marquis GS 117,485mi. R.I.P. 7/14/12 frown

Top
Links
#2582491 - 08/20/12 12:01 PM Re: Spark Plug Wire Routing. [Re: BigMerc96]
Bangster Offline

Poobah

Registered: 11/30/01
Posts: 9359
Loc: Tucson Az
I didn't know there was that much difference.

This is my 97 COUGAR with OEM Coil Packs and wires. It is a Cougar, not a Mustang or a Crown Vic, but it might help.









Again, it is a Cougar smile
_________________________
00 Grand Marquis LS Premium - 97 Cougar 4.6 Sport - 89 Cougar LS - 63 Falcon 302 - 82 F-150 - 97 Mark VIII LSC - 2017 Escape SE - 2012 Fusion Sport AWD

Top
#2582501 - 08/20/12 12:17 PM Re: Spark Plug Wire Routing. [Re: BigMerc96]
Derek19CrownVic Offline
Traitor.
Over the Hill

Registered: 05/24/09
Posts: 4835
Loc: Deh Island
Would a picture of the Linc's routing help ?
_________________________
U all 'N


Top
#2582545 - 08/20/12 01:55 PM Re: Spark Plug Wire Routing. [Re: BigMerc96]
Derek19CrownVic Offline
Traitor.
Over the Hill

Registered: 05/24/09
Posts: 4835
Loc: Deh Island
Heres some pictures for reference. These are from the '95. I would've taken them on the '97 since its the same year but the sun glare was too bad.


Attachments




_________________________
U all 'N


Top
#2582546 - 08/20/12 01:56 PM Re: Spark Plug Wire Routing. [Re: Bangster]
BigMerc96 Offline

I know nothing
Posting Addict

Registered: 06/05/10
Posts: 19868
Loc: I can see Detroit from here!
Originally Posted By: Bangster
I didn't know there was that much difference.

This is my 97 COUGAR with OEM Coil Packs and wires. It is a Cougar, not a Mustang or a Crown Vic, but it might help.

Again, it is a Cougar smile

Thank you very much! exactly what I needed. Apparently, the direction in which the wires come off the coil makes all the difference. On a panther, they come off the coils so that the wires point towards the alternator (if that makes sense). The Mustang, like the Cougar above, apparently, the wires come off the coils pointing towards the firewall. I rerouted the wires from scratch starting with #4 (the longest wire) and now things route to my satisfaction. smile
_________________________
-Steve

2006 Audi A6 ~132k miles, stock.
1998 Mercury Grand Marquis LS HPP ~100k miles, slowly acquiring modifications.
1997 Town Car Cartier ~145k miles, Ported Plenum, Gutted Airbox, Contour E-fan Retrofit, Dual exhaust with Magnaflows, cats deleted, MSD Ignition, KYB Gas-A-Justs, P71 front bar, air ride reinstated, Projector retrofit, Caddy 4-note horn retrofit, Wood rim steering wheel retrofit, holistic weight reduction as the parts fall off..
1996 Mercury Grand Marquis GS 117,485mi. R.I.P. 7/14/12 frown

Top
#2582553 - 08/20/12 02:10 PM Re: Spark Plug Wire Routing. [Re: BigMerc96]
QuicksterP71 Offline
Over the Hill

Registered: 02/05/11
Posts: 2114
Loc: Ma.
so much awesome waste spark
_________________________

1997 Crown Vic P71 95.000 miles Formerly Mass Correctional Vehicle, Buying a new Vic one part at a time. Ported and polished plenum, 70mm throttle body, Remote starter, Body Work and New Paint Job, 35% window tint, HPP Wheels off a 96, Pioneer deh-1100mp, Pioneer TS-A6882R 6*8, Pioneer Premier TS-A933P 6*9

Top
#2582569 - 08/20/12 02:38 PM Re: Spark Plug Wire Routing. [Re: BigMerc96]
BigMerc96 Offline

I know nothing
Posting Addict

Registered: 06/05/10
Posts: 19868
Loc: I can see Detroit from here!
For Future reference:

Panther wire diagram:


Mustang wire diagram:


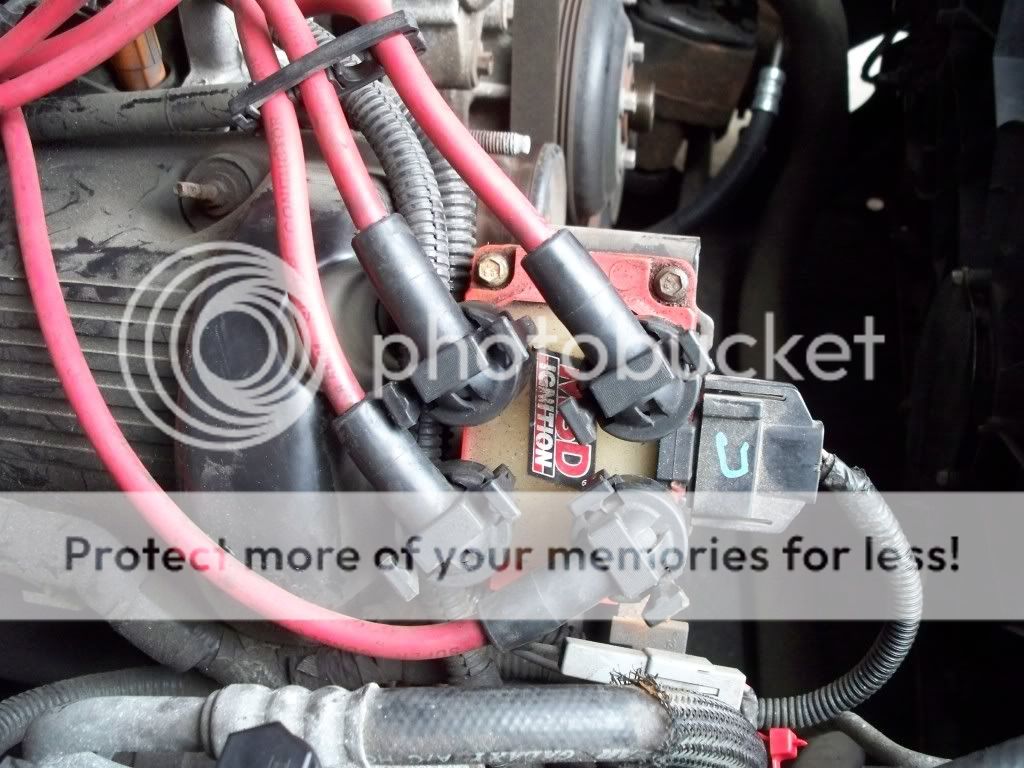

Mustang routing on Panther (pass side coil):



Mustang routing on Panther (driver side coil):



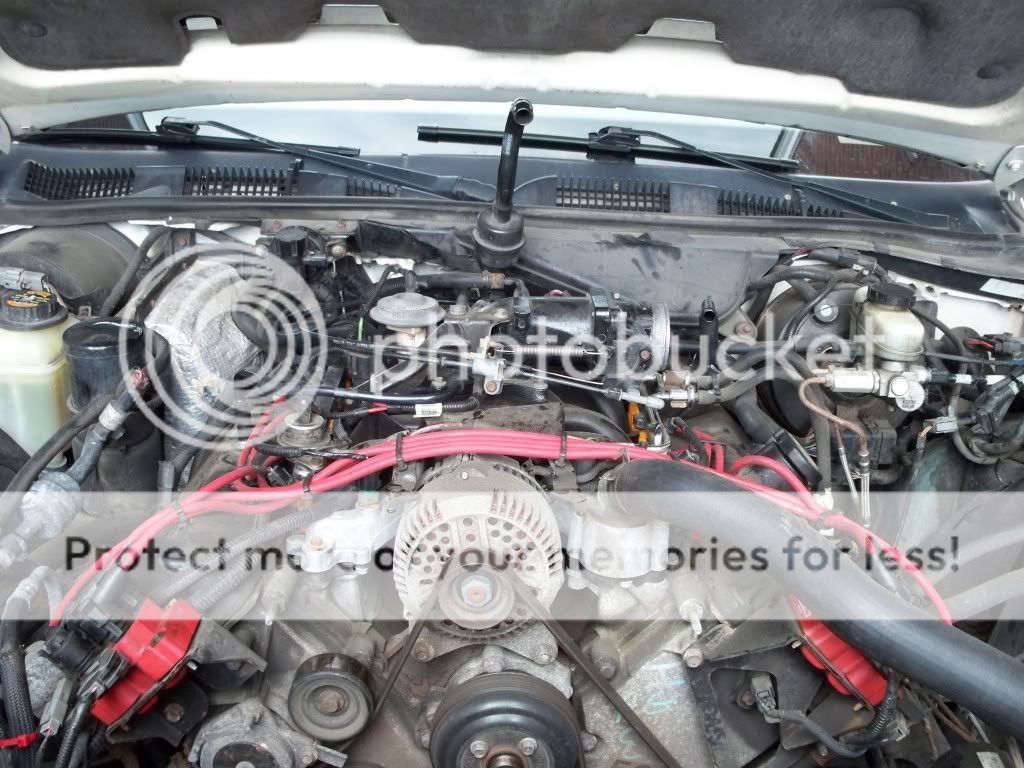

Mustang Routing on Panther (front)
_________________________
-Steve

2006 Audi A6 ~132k miles, stock.
1998 Mercury Grand Marquis LS HPP ~100k miles, slowly acquiring modifications.
1997 Town Car Cartier ~145k miles, Ported Plenum, Gutted Airbox, Contour E-fan Retrofit, Dual exhaust with Magnaflows, cats deleted, MSD Ignition, KYB Gas-A-Justs, P71 front bar, air ride reinstated, Projector retrofit, Caddy 4-note horn retrofit, Wood rim steering wheel retrofit, holistic weight reduction as the parts fall off..
1996 Mercury Grand Marquis GS 117,485mi. R.I.P. 7/14/12 frown

Top
#2582575 - 08/20/12 02:44 PM Re: Spark Plug Wire Routing. [Re: BigMerc96]
QuicksterP71 Offline
Over the Hill

Registered: 02/05/11
Posts: 2114
Loc: Ma.
nice upgrade Merc i am jealous now drool drool drool drool drool
_________________________

1997 Crown Vic P71 95.000 miles Formerly Mass Correctional Vehicle, Buying a new Vic one part at a time. Ported and polished plenum, 70mm throttle body, Remote starter, Body Work and New Paint Job, 35% window tint, HPP Wheels off a 96, Pioneer deh-1100mp, Pioneer TS-A6882R 6*8, Pioneer Premier TS-A933P 6*9

Top
#2582593 - 08/20/12 03:20 PM Re: Spark Plug Wire Routing. [Re: BigMerc96]
RollinX151 Offline
Over the Hill

Registered: 02/01/11
Posts: 1614
Loc: Davie, FL


Why don't you move the 2 left wires over to the right and stick that loose wire in the retainer clip?
_________________________
2015 Ford Taurus SHO 3.5L Twin Turbo - 32k miles. Unleashed tuned, H&R springs lowered, Hot pipes w/ turbosmart blowoff, Airaid intake, MSD coils, Colder plugs, JLT catch can, UPR oil cap breather
2008 Ford Crown Victoria P71 - SOLD

Top
#2582618 - 08/20/12 03:58 PM Re: Spark Plug Wire Routing. [Re: BigMerc96]
BigMerc96 Offline

I know nothing
Posting Addict

Registered: 06/05/10
Posts: 19868
Loc: I can see Detroit from here!
Tried it, the wire isn't long enough to both do that and still not create unnecessary crossing. The way I have them routed the wires don't actually touch one another anywhere. Moving the #1 wire into the retainer causes it to cross the other 3 wires for that bank,and the number 3 and 5 wires to cross with one of the wires that comes over the alternator, that extra space eliminates that.
_________________________
-Steve

2006 Audi A6 ~132k miles, stock.
1998 Mercury Grand Marquis LS HPP ~100k miles, slowly acquiring modifications.
1997 Town Car Cartier ~145k miles, Ported Plenum, Gutted Airbox, Contour E-fan Retrofit, Dual exhaust with Magnaflows, cats deleted, MSD Ignition, KYB Gas-A-Justs, P71 front bar, air ride reinstated, Projector retrofit, Caddy 4-note horn retrofit, Wood rim steering wheel retrofit, holistic weight reduction as the parts fall off..
1996 Mercury Grand Marquis GS 117,485mi. R.I.P. 7/14/12 frown

Top
#2582627 - 08/20/12 04:09 PM Re: Spark Plug Wire Routing. [Re: BigMerc96]
RollinX151 Offline
Over the Hill

Registered: 02/01/11
Posts: 1614
Loc: Davie, FL
Oh I see it now.
_________________________
2015 Ford Taurus SHO 3.5L Twin Turbo - 32k miles. Unleashed tuned, H&R springs lowered, Hot pipes w/ turbosmart blowoff, Airaid intake, MSD coils, Colder plugs, JLT catch can, UPR oil cap breather
2008 Ford Crown Victoria P71 - SOLD

Top
#2582633 - 08/20/12 04:22 PM Re: Spark Plug Wire Routing. [Re: BigMerc96]
Bangster Offline

Poobah

Registered: 11/30/01
Posts: 9359
Loc: Tucson Az
So the coil packs are mounted further out and angled, I see that now. I don't see the power steering pump. I haven't spent much time under the hood of a pre 98 in a long time, and I have a 2000 GM now.

Are those rusty brake lines in the driverside picture, or are they oily and dirty? Looks scarily like rust to me, ouch.
_________________________
00 Grand Marquis LS Premium - 97 Cougar 4.6 Sport - 89 Cougar LS - 63 Falcon 302 - 82 F-150 - 97 Mark VIII LSC - 2017 Escape SE - 2012 Fusion Sport AWD

Top
#2582636 - 08/20/12 04:28 PM Re: Spark Plug Wire Routing. [Re: BigMerc96]
BigMerc96 Offline

I know nothing
Posting Addict

Registered: 06/05/10
Posts: 19868
Loc: I can see Detroit from here!
Don't worry, its rust. smile wait... frown Its on my list.

As for the power steering pump, its in the same spot on all '92+ panthers, but the reservoir moved a few times. On mine, the reservoir is on the drivers side fender liner.


Edited by BigMerc96 (08/20/12 04:30 PM)
_________________________
-Steve

2006 Audi A6 ~132k miles, stock.
1998 Mercury Grand Marquis LS HPP ~100k miles, slowly acquiring modifications.
1997 Town Car Cartier ~145k miles, Ported Plenum, Gutted Airbox, Contour E-fan Retrofit, Dual exhaust with Magnaflows, cats deleted, MSD Ignition, KYB Gas-A-Justs, P71 front bar, air ride reinstated, Projector retrofit, Caddy 4-note horn retrofit, Wood rim steering wheel retrofit, holistic weight reduction as the parts fall off..
1996 Mercury Grand Marquis GS 117,485mi. R.I.P. 7/14/12 frown

Top
#2582669 - 08/20/12 05:27 PM Re: Spark Plug Wire Routing. [Re: BigMerc96]
ajdereicup Offline
13 inches of pure joy
Poobah

Registered: 07/11/12
Posts: 6257
Loc: Lombard Il
The red is a nice off set color for the whole engine
_________________________
Proud member of the 86400 Crew
My new ride = Lacoste Observe CA in black and white. REAL leather. How bout dem apples?
Originally Posted By gplayer
Thats way too much typing. AJ gets a pass because he only gets to do it once a day.

Top
#2582834 - 08/20/12 09:08 PM Re: Spark Plug Wire Routing. [Re: ajdereicup]
BigMerc96 Offline

I know nothing
Posting Addict

Registered: 06/05/10
Posts: 19868
Loc: I can see Detroit from here!
Originally Posted By: ajdereicup
The red is a nice off set color for the whole engine
Thanks beer1

Now if only the rest of the engine bay wasn't so dirty. Some day I'll get ambitious enough to clean it all up.
_________________________
-Steve

2006 Audi A6 ~132k miles, stock.
1998 Mercury Grand Marquis LS HPP ~100k miles, slowly acquiring modifications.
1997 Town Car Cartier ~145k miles, Ported Plenum, Gutted Airbox, Contour E-fan Retrofit, Dual exhaust with Magnaflows, cats deleted, MSD Ignition, KYB Gas-A-Justs, P71 front bar, air ride reinstated, Projector retrofit, Caddy 4-note horn retrofit, Wood rim steering wheel retrofit, holistic weight reduction as the parts fall off..
1996 Mercury Grand Marquis GS 117,485mi. R.I.P. 7/14/12 frown

Top
