#2881315 - 01/18/15 01:39 AM 18 months in the making: 4V M122 conversion.
Drac Offline

Cpt. Smug
Over the Hill

Registered: 03/19/10
Posts: 3345
Loc: Cali
Pandora's box has been opened.


Almost 2 years ago I set off on a mission. Swap in 4V Terminator heads with a M122 supercharger. For those not "in the know", the M122 is the Eaton supercharger from the 5.4L GT500 Mustang. It brings about a lot of advantages over the M112, including, but not limited to: Gen 5 rotors, updated bearings, overall more efficient design, driver's side intake and DBW friendly. The sheer involvement, severity and cost of this project has caused it to take a lot of time (No duh!) Seeing as this is totally uncharted territory on a panther, an astonishing amount of R&D had to be employed to make this happen- but after almost 2 years, the stock 2V motor has been pulled, Cobra heads are getting bolted on followed by the M122 supercharger. I welcome a challenge, and having pioneered a lot of "firsts" in the panther world, I welcomed this project with wide open arms.

I have talked to a few people about my direction, but as a whole, I have kept it relatively quiet. I have dropped hints here and there, but I doubt anyone thinks I was serious or picked up on them LOL.




The nitty gritty:

I am going to use my stock block for now and underdrive the blower for a low boost setup of about 8 lbs to hit around 415+/- RWHP. Due to the gen 5 rotor design, improved bearings of the M122 and the fact that this particular one is PORTED and INTERNALLY POLISHED (something the seller didnt say, LOL) i have to underdrive this beast a LOT to not blow my block to smithereens. (I knew it was polished on the outside, just not inside as well; or ported for that matter!) A 3.65" upper and a Metco stock lower will be used for now. I am saving for a fully built MMR 5.3L stroker block, but that's gonna take awhile until I can get it.

Heads are 2004 9-thread Terminator heads W/ stock cams for now. Will probably go B cams after I get a forged lower. TB is a Dragon. GT500 ram air intake. SW ceramic coated 4V headers. 3" dual exhaust. Fully ported Terminator lower manifold/intercooler assy W/ Fluidyne heat exchanger. All these parts have been secured already and are waiting on install. Everything down to gaskets for the heads/4V timing cover/4V valve covers, ect.

This setup will be able to produce over 600 RWHP once the correct shortblock is secured. 415 for now is more then enough for a stock shortblock. This blower is fully capable of about 20 LBS of boost.

I will update this thread periodically as the build progresses. deadline is April 10th of this year. smile

Talk is cheap. Here is pics.




Got a few parts for this swap lol. This isn't even all of them.







The M122 supercharger in question.







Lower porting







Internal porting/polishing







Some rando 4V ceramic coated headers. Thanks Chris/ADTR!







M122 main adapter plate, 4V Eaton conversion brackets and Marauder custom coolant crossover tubes







Timing cover, ram air, 4V COPs and intercooler/lower intake







ported and polished lower intake

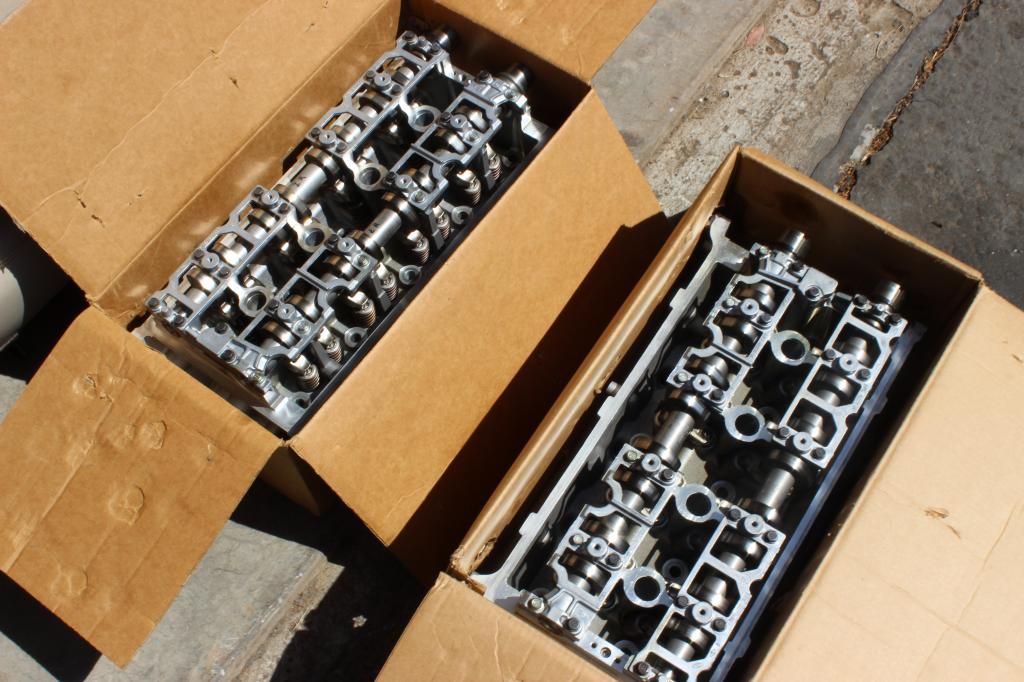

2004 9-thread C-heads

_________________________

2004 Crown Victoria finished in Dark Pearl Blue Metallic (DX) | Ported M122 powered DOHC conversion with all supporting mods. Dyno queen.
2010 BMW M5 V10 finished in Monaco Blue Metallic with 2-tone interior | Eisemann race exhaust | Lowered On Dinan coilovers. Daily Driver

BlueVic's DOHC Supercharged Build.
Bluevic's 1,000 RWHP Returnless Fuel System.
2009+ Window/Lock/Mirror Control Switches Retrofit.
Mercury Cougar Trunk Switch Retrofit.








Top
Links
#2881316 - 01/18/15 01:39 AM Re: 18 months in the making: 4V M122 conversion. [Re: Drac]
Drac Offline

Cpt. Smug
Over the Hill

Registered: 03/19/10
Posts: 3345
Loc: Cali
Silly 2V coming out for good!







Storage unit engine swap anyone? LOL







#2Vproblems!!!!!







Ready for heads!

_________________________

2004 Crown Victoria finished in Dark Pearl Blue Metallic (DX) | Ported M122 powered DOHC conversion with all supporting mods. Dyno queen.
2010 BMW M5 V10 finished in Monaco Blue Metallic with 2-tone interior | Eisemann race exhaust | Lowered On Dinan coilovers. Daily Driver

BlueVic's DOHC Supercharged Build.
Bluevic's 1,000 RWHP Returnless Fuel System.
2009+ Window/Lock/Mirror Control Switches Retrofit.
Mercury Cougar Trunk Switch Retrofit.








Top
#2881317 - 01/18/15 01:52 AM Re: 18 months in the making: 4V M122 conversion. [Re: Drac]
NGreen0807 Offline
Over the Hill

Registered: 08/17/09
Posts: 2711
Loc: Rock Hill, NY
Excellent!

Nice to see someone else doing something new. Can't wait to see the finished product!
_________________________
-Nick

1999 CVPI. TR3650, tiny turbo, Ect.
2004 LX

Top
#2881323 - 01/18/15 03:20 AM Re: 18 months in the making: 4V M122 conversion. [Re: Drac]
Superhobo Offline
Over the Hill

Registered: 12/05/09
Posts: 3017
Loc: Kansas City
Nice! Can't wait to see the progress on this. Looking good so far.


P.S. How big is that storage unit? 10x300? lol
_________________________
2000 P71. -PI intake, BBK 78mm throttle intake, 80mm MAF, Granatelli COPs, Autolite plugs, Ford 30# injectors, MMR fuel rails, Ford GT cam followers, K&N filter, UD pulleys, Stewart WP, Comp XE262H cams, Trick Flow cam spacers, Stainless Works long tubes w/catted lead pipes, 2.5" cat-back w/MagnaFlow x-pipe & Jones Full Boar mufflers, Heinous CAs, Metco Watts-Link, Energy Suspension bushings & end links, 4:10/Trac-lok w/carbon fiber clutches, Setina rear window barriers, Taxi Depot front bumper guard, Sony head unit, Pioneer speakers, tuned w/Sniper.

Top
#2881332 - 01/18/15 06:03 AM Re: 18 months in the making: 4V M122 conversion. [Re: Drac]
Drac Offline

Cpt. Smug
Over the Hill

Registered: 03/19/10
Posts: 3345
Loc: Cali
Its a 10'x30'
_________________________

2004 Crown Victoria finished in Dark Pearl Blue Metallic (DX) | Ported M122 powered DOHC conversion with all supporting mods. Dyno queen.
2010 BMW M5 V10 finished in Monaco Blue Metallic with 2-tone interior | Eisemann race exhaust | Lowered On Dinan coilovers. Daily Driver

BlueVic's DOHC Supercharged Build.
Bluevic's 1,000 RWHP Returnless Fuel System.
2009+ Window/Lock/Mirror Control Switches Retrofit.
Mercury Cougar Trunk Switch Retrofit.








Top
#2881343 - 01/18/15 08:15 AM Re: 18 months in the making: 4V M122 conversion. [Re: NGreen0807]
2004_p71 Offline

no replacement for displacement
Posting Addict

Registered: 09/04/03
Posts: 15781
Loc: Quebec Canada
Originally Posted By: NGreen0807
Excellent!

Nice to see someone else doing something new. Can't wait to see the finished product!


I can only second Nick on this smile

I like to see when things are done !
You guy in cali will all the the fastest ford powered cars lol ! laugh

congrats smile
_________________________

Best time 13.079 @ 105 1.8 60'
comming back this fall

Top
#2881351 - 01/18/15 09:20 AM Re: 18 months in the making: 4V M122 conversion. [Re: 2004_p71]
BigNSlow Offline
Metroplectic

Registered: 01/31/03
Posts: 41278
Loc:


If I am not mistaking you will be the first one with M122 on a Panther.

Top
#2881366 - 01/18/15 11:52 AM Re: 18 months in the making: 4V M122 conversion. [Re: Drac]
GoldPanther Offline
BOK contributor
Over the Hill

Registered: 07/16/13
Posts: 2908
Loc: Chitcagoland!
I am following this thread like my life depends on it.

I've thinking about swapping some 4v c heads on my car. Op I hope you won't mind if I ask you some questions about the heads installing process.
Also, why would you go with B heads when C heads flow better and they have less issues.
_________________________
03 mgm ultimate edition.
June 2015 Panther of the Month
December 2018 Panther of the Month
Originally Posted By Black_Chrome
Black_Chrome: If only I had a merc...Oh wait, its still sitting out at the farm frown "This holiday season give that special woman in your life something she deserves. Dans External Relay Harness."


Top
#2881373 - 01/18/15 01:33 PM Re: 18 months in the making: 4V M122 conversion. [Re: Drac]
KayTar Offline

Poobah

Registered: 05/13/09
Posts: 9428
Loc: Alberta, Canada
Thankfully out of the few members that are still active cool things like this still happen.
_________________________
2008 P71 - Vortech V2-SQ, 3.4" pulley, 2nd cats removed - Sold
2013 Silverado 2500 6.0 4X4 - Sold
2017 Challenger 392

Top
#2881377 - 01/18/15 02:04 PM Re: 18 months in the making: 4V M122 conversion. [Re: GoldPanther]
Drac Offline

Cpt. Smug
Over the Hill

Registered: 03/19/10
Posts: 3345
Loc: Cali
Originally Posted By: DanMitchell13
I am following this thread like my life depends on it.

I've thinking about swapping some 4v c heads on my car. Op I hope you won't mind if I ask you some questions about the heads installing process.
Also, why would you go with B heads when C heads flow better and they have less issues.


No probs, man. Ask away!

Also, I do have C heads. I will be going to B head cams once I up the boost down the road. The B cams have a longer duration then C cams. Its almost like a stage 1 can upgrade minus the 1200$ pricetag. Its a common upgrade in the Terminator crowd.



I know there was an m122 thread floating around on mm.net, but it has been dormant for awhile. Not sure whatever came from it.
_________________________

2004 Crown Victoria finished in Dark Pearl Blue Metallic (DX) | Ported M122 powered DOHC conversion with all supporting mods. Dyno queen.
2010 BMW M5 V10 finished in Monaco Blue Metallic with 2-tone interior | Eisemann race exhaust | Lowered On Dinan coilovers. Daily Driver

BlueVic's DOHC Supercharged Build.
Bluevic's 1,000 RWHP Returnless Fuel System.
2009+ Window/Lock/Mirror Control Switches Retrofit.
Mercury Cougar Trunk Switch Retrofit.








Top
#2881384 - 01/18/15 02:48 PM Re: 18 months in the making: 4V M122 conversion. [Re: Drac]
Ezbok58a Offline
Banned
Posting Addict

Registered: 06/17/04
Posts: 24124
Loc: Who wants to know...
Nothing good,

I look forward to all the happenings. This is most good, most good indeed
_________________________
I try not to take things personally...
Everyone's a person, how else are they supposed to take it?
'The portal to hell is opened with the incantation of good intentions'

Top
#2881388 - 01/18/15 05:24 PM Re: 18 months in the making: 4V M122 conversion. [Re: Drac]
Blackcvpi Offline
Cynical Jackass
Poobah

Registered: 05/19/09
Posts: 5427
Loc: Somewhere in the CRC
Great news.

I look forward to personally flogging it when it's all done. smile
_________________________
2003 Crown Victoria ( AKA Car Craft Crown Vic ) ff, Trick Flow 38CC top end kit, 04 Navigator water pump, Circle D multi disk 3500-3700 stall converter, Full SW exhaust, MM Airbox and MAF, ADTR zip tube, 78mm BBK Plenum and TB, Transgo Stage 2 shift kit, 3.73 with track lok, Naake coilover suspension, Henious control arms, Metco watts link, ARP watts link stud, Addco sway bars, Powerslot rotors with Hawk HPS pads, BH1976 headlight relay harness, Procar sportsman pro race seat's, 17" steel rims widened to 9.0 with Nitto 555's in 285/40/17 tire for the rear, Tuned by Mo's Speed Shop in Dallas Georgia....more mods coming soon.

1997 Mercury Grand Marquis HPP. Full PI engine swap, Stock PI torque converter, 04 Navigator water pump, 3.27 with trac lok




Top
#2881430 - 01/19/15 12:08 AM Re: 18 months in the making: 4V M122 conversion. [Re: KayTar]
2004_p71 Offline

no replacement for displacement
Posting Addict

Registered: 09/04/03
Posts: 15781
Loc: Quebec Canada
Originally Posted By: KayTar
Thankfully out of the few members that are still active cool things like this still happen.


This ^^

the high performance section was getting really boring lately laugh
_________________________

Best time 13.079 @ 105 1.8 60'
comming back this fall

Top
#2881481 - 01/19/15 02:31 PM Re: 18 months in the making: 4V M122 conversion. [Re: Drac]
Drac Offline

Cpt. Smug
Over the Hill

Registered: 03/19/10
Posts: 3345
Loc: Cali
Honestly, I am surprised no one else has tried this already. I knew when I started this 18 months ago no one else had tried, but I for sure thought by the time I was nearing completion- someone else would have already done it.

Got some more gaskets last Saturday, and more hardware is supposed to arrive tomorrow. Hopefully the heads get bolted on the block as early as this Saturday.
_________________________

2004 Crown Victoria finished in Dark Pearl Blue Metallic (DX) | Ported M122 powered DOHC conversion with all supporting mods. Dyno queen.
2010 BMW M5 V10 finished in Monaco Blue Metallic with 2-tone interior | Eisemann race exhaust | Lowered On Dinan coilovers. Daily Driver

BlueVic's DOHC Supercharged Build.
Bluevic's 1,000 RWHP Returnless Fuel System.
2009+ Window/Lock/Mirror Control Switches Retrofit.
Mercury Cougar Trunk Switch Retrofit.








Top
#2881492 - 01/19/15 03:43 PM Re: 18 months in the making: 4V M122 conversion. [Re: Drac]
Drac Offline

Cpt. Smug
Over the Hill

Registered: 03/19/10
Posts: 3345
Loc: Cali
Blower came back from the machine shop today.

The mounting superstructure had to be brought down about 2MM as well as modifying some of the mounting feet and modifying the bolt holes. Also, the 2 vacuum lines coming off the elbow were omitted, as they are no longer needed anymore (replaced with an allen bolt for a clean look)

Lastly, the extended pulley hub was installed that has the Billetflow adapter built into it. New oil was put in it and it is ready to rock and roll!












_________________________

2004 Crown Victoria finished in Dark Pearl Blue Metallic (DX) | Ported M122 powered DOHC conversion with all supporting mods. Dyno queen.
2010 BMW M5 V10 finished in Monaco Blue Metallic with 2-tone interior | Eisemann race exhaust | Lowered On Dinan coilovers. Daily Driver

BlueVic's DOHC Supercharged Build.
Bluevic's 1,000 RWHP Returnless Fuel System.
2009+ Window/Lock/Mirror Control Switches Retrofit.
Mercury Cougar Trunk Switch Retrofit.








Top
